Web application is a part of complex IDS implementation. A case of implementation is presented on picture below.

Current version of our solution consists of

• Linux OpenSuSE 12.3+ x86 or x86-64
• Snort 2.9+ with DAQ and our patches (about 39000 active rules, total 41200)
• SnortSam 2.9 with our patches
• Barnyard2 2-1.13
• Tomcat 7+
• Firewall configuration scripts (24 additional net filter chains, about 1500 rules)
• Scripts for automatic updating rules
• Script based monitoring daemon
• Web server and cache server logs parsing scripts
• JSP based console user interface: IDS rules updating, setting individual and group rule action, restarting IDS, updating permanent blocking firewall rules set, activate and deactivate SnortSam generated firewall rules and other functions.

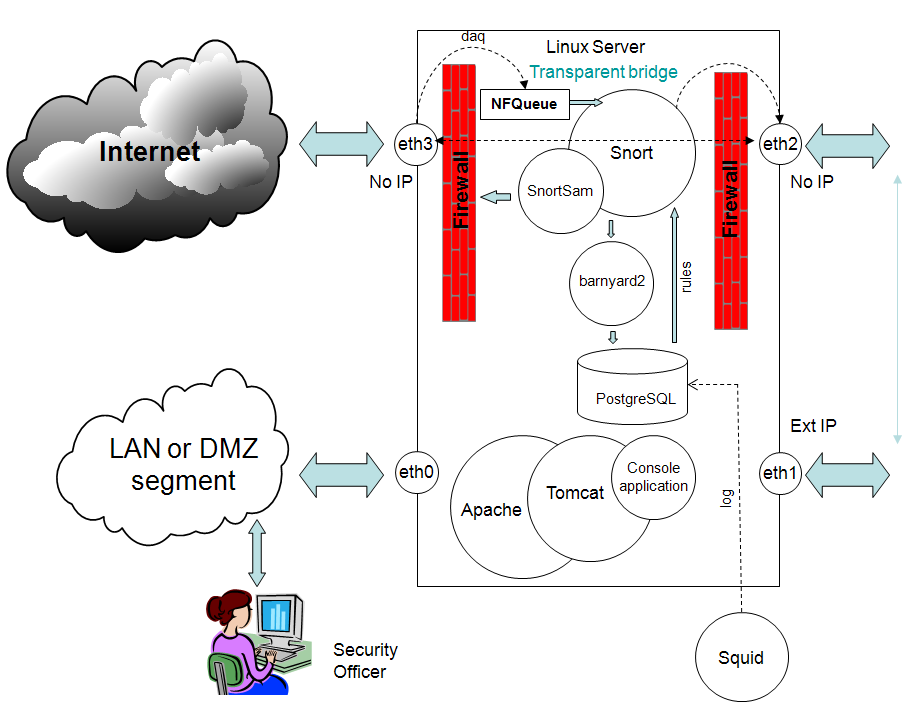

Pic 1. A case of transparent bridge IPS implementation.
